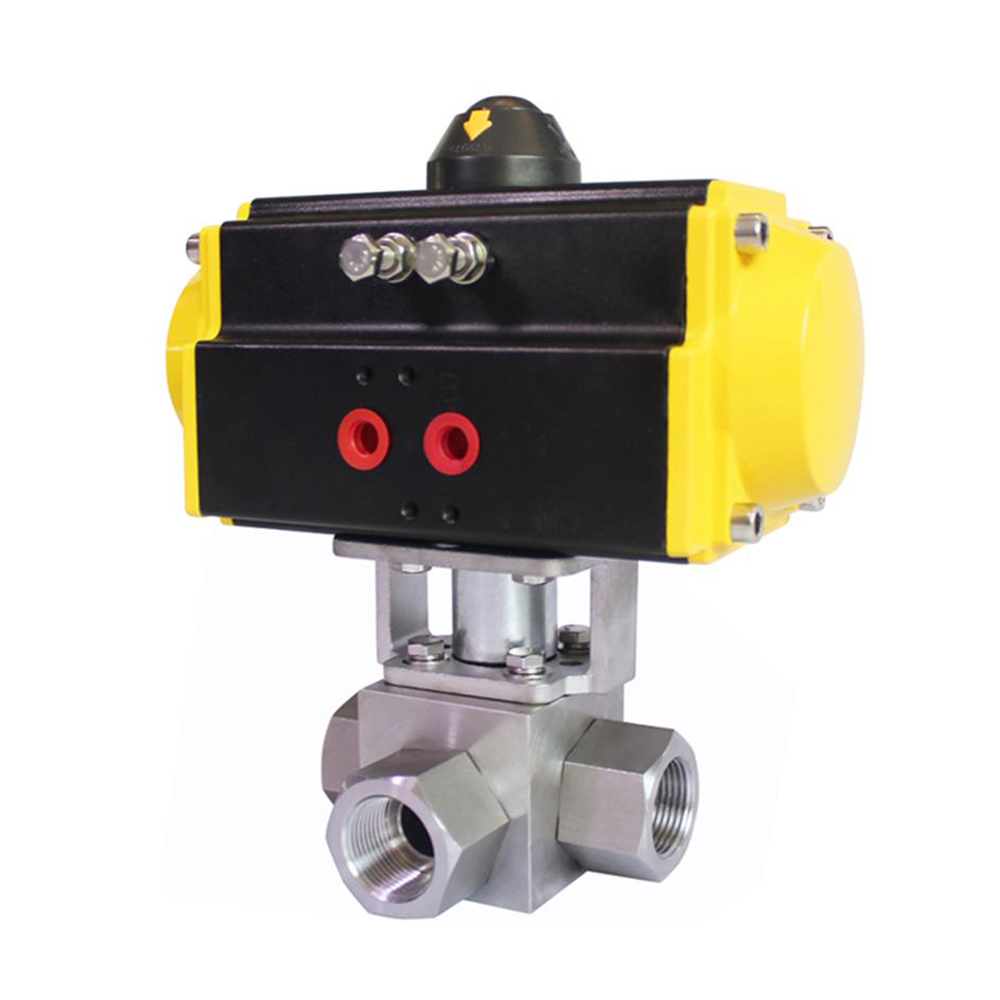

HK56-G Pneumatic Actuated High Pressure 3 Way Ball Valve
Price: Contact
Product code: HK56-G
HK56-G Pneumatic Actuated High Pressure 3 Way Ball Valve
Pneumatic High pressure ball valve, 2 way or 3 way port configuration, double acting standard control mode, single acting is available, 304 or 316 stainless steel body construction, 2.5 to 8bar input air pressure, minimum 1/4 inch female thread connection, default PTFE seat, resistant to almost all fluids. Suitable for higher operating pressures and temperatures.
- Model: HK56GT
- Size Range: 1/4" to 2"
- Pressure Range: 10~40MPa / 1450~5800PSI
- Material: Stainless Steel
–
+
Order
Product information
Pneumatic High Pressure 3 Way Ball Valve
- Available In Spring Return(Single Acting) And Double Acting Pneumatic Actuator.
- High Torque Up To 4678Nm.
- Available In T Port and L Port.
- 2 way or 3 way port configuration.
- NPT Thread is Available.
- Ultrahigh Pressure up to PN100-PN400.
