Hyoshin Solenoid Valve
Hyoshin Solenoid Valve

Price: Contact

Product code: HPW 154, HPW 206, HPW 2510, HPW 3212, HPW 4014, HPW 5020, HPW 6524, HPW 8030

HPW 154, HPW 206, HPW 2510, HPW 3212, HPW 4014, HPW 5020, HPW 6524, HPW 8030

  • Category: Solenoid Valve
  • Brand: HSE
  • Origin: Korea
  • Model/Fig/Product code: HPW 154, HPW 206, HPW 2510, HPW 3212, HPW 4014, HPW 5020, HPW 6524, HPW 8030
  • Warranty: Genuine warranty
Product information

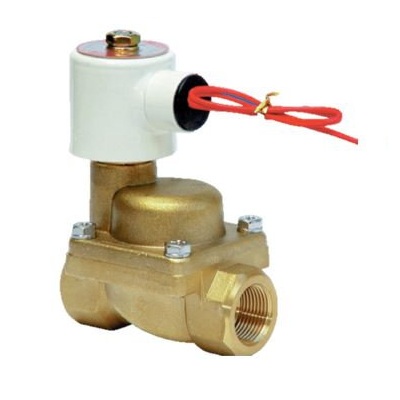

HPW Water Solenoid Valves – Hyoshin Electronic (HSE)

Hyoshin Electronic (HSE) water solenoid valves – models HPW 154, HPW 206, HPW 2510, HPW 3212, HPW 4014, HPW 5020, HPW 6524, HPW 8030 provide efficient and reliable flow control for industrial and commercial systems. With a long-standing reputation from South Korea, HSE offers solenoid valves that withstand high working pressure, resist corrosion, and feature high-quality magnetic coils, suitable for steam, air, oil, and water applications.

Detailed Overview of HPW Solenoid Valves

HPW solenoid valves are diaphragm type and normally closed (NC), allowing precise flow control, reducing leakage risks, and extending system lifespan. These valves are available in multiple sizes to meet various installation requirements.

Popular HPW Models:

  • HPW 102, HPW 103, HPW 154, HPW 206, HPW 2510
  • HPW 3212, HPW 4014, HPW 5020, HPW 6524, HPW 8030

Key Features

  • Diaphragm type: Ensures smooth and durable operation.
  • Normally closed (NC): The valve remains closed without power, ensuring system safety.
  • Premium materials: Brass body with NBR seal, optional EPDM or FPM.
  • Versatile: Compatible with water, air, oil, and inert gases.
  • High pressure tolerance: 0.5 – 10 Kgf/㎠, optionally up to 20 Kgf/㎠.
  • Wide voltage range: AC 100/110/200/220V, DC 24V.
  • Flexible connections: Standard PF 1/2 wire, optional grommet, DIN, or terminal box.

Practical Applications

HPW HSE solenoid valves are widely used across industries due to their durability and precise flow control:

  • Water supply systems: Efficiently manage water flow in residential and industrial pipelines.
  • Air conditioning (AC) systems: Control refrigerant and airflow for stable temperatures.
  • Boilers: Ensure safe and reliable pressure control.
  • Compressors: Manage air or fluid flow in machinery.
  • Medical equipment: Precise control for safe operation.
  • Vacuum packing machines: Control airflow and vacuum pressure effectively.

Specifications

Model Orifice PT(Rc) Size
HPW 102 Ø10mm 1/4"
HPW 103 Ø10mm 3/8"
HPW 154 Ø15mm 1/2"
HPW 206 Ø20mm 3/4"
HPW 2510 Ø25mm 1"
HPW 3212 Ø32mm 1 1/4"
HPW 4014 Ø40mm 1 1/2"
HPW 5020 Ø50mm 2"
HPW 6524 Ø65mm 65A
HPW 8030 Ø80mm 80A
  • Fluid temperature: 0 ~ 60°C
  • Ambient temperature: Max 50°C
  • Body material: Brass
  • Seal material: NBR standard, optional EPDM/FPM
  • Function: Normally closed (NC) standard, normally open (NO) optional

Benefits of HPW Water Solenoid Valves

  • High durability: Resistant to pressure and corrosion for long-lasting performance.
  • Fast and precise operation: Efficient flow control for optimal system performance.
  • Easy installation and maintenance: Compact design saves time and cost.
  • Remote control: Enables automation and flexible system management.
  • Versatile applications: Suitable for water, air, steam, oil, medical, and industrial processes.

Conclusion

HPW HSE water solenoid valves are the ideal solution for industrial and commercial systems, including water supply, air conditioning, boilers, compressors, medical equipment, and vacuum packing machines. With durable brass construction, high-pressure resistance, corrosion protection, and precise operation, HPW solenoid valves ensure reliable performance and long service life.
