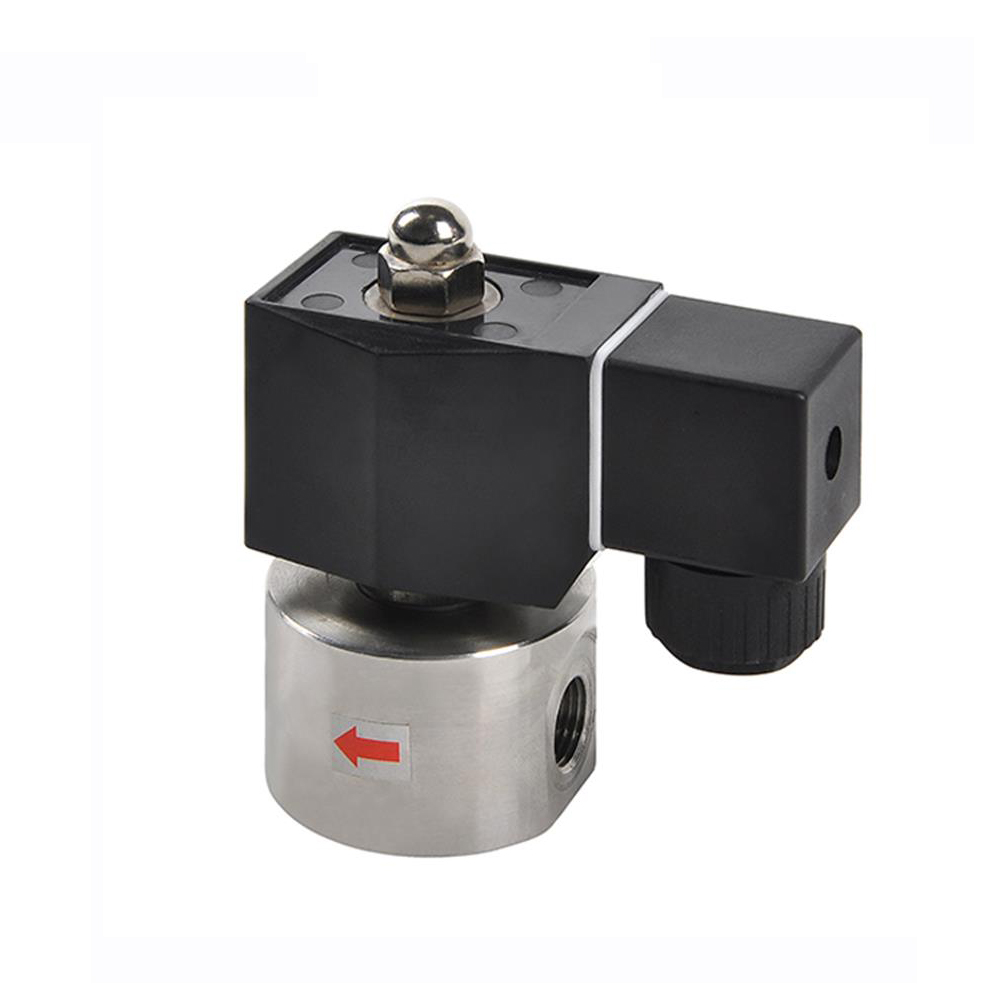

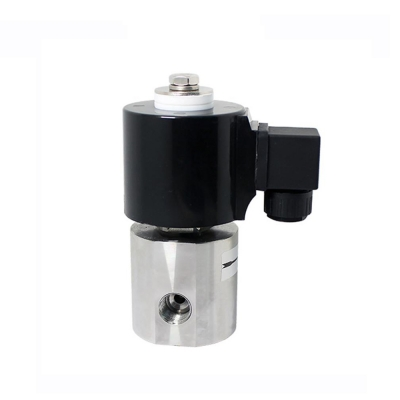

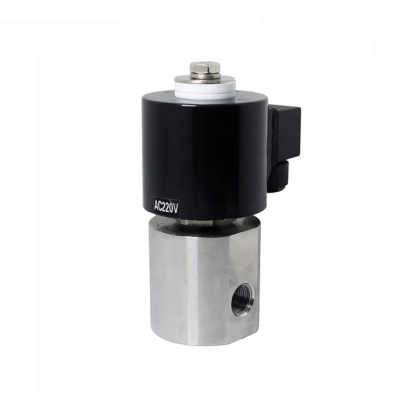

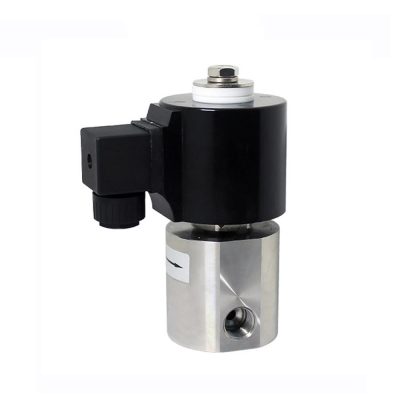

1000psi High-Pressure Solenoid Valve for Compressed Natural Gas
Price: Contact
Product code: HKKB
1000psi High-Pressure Solenoid Valve for Compressed Natural Gas
Wholesale Direct Acting 12V High Pressure Solenoid Valve normally closed (energise to open) for Water, Air, Oil, Steam, Gas available in all voltages (12V, 24V, 120V, 240V, etc) and size ranging 1/4 inch, 1/2 inch. The pressure ranging 200 PSI, 300 PSI, 500 PSI, 1000 PSI, 2000 PSI, 3000 PSI, etc. The coil is 100% ED rated for continual operation. Typical Applications include petrochemical, diesel farms, vacuum packaging, tank drain or high pressure service & general industry.
- Model: HKKB
- Size Range: 1/4''~1/2''
- Pressure Range: 0.5MPa-25 MPa
- Material: Stainless steel
Download PDF
–
+
Order
Product information
12v/24v High Pressure Solenoid Valve
- Features: Zero Leakage, Waterproof, High Pressure, High Frenquency, etc
- Size Range: 1/4″ to 1″. Special size could be customized.
- Multiple voltage options
- Valves do not require a minimum operating pressure
- Suitable Medium: Compressed Natural Gas
- Light weight, low cost and durable. Widely used in filter machine, separator, air tank, dripping feet and other air compressor system parts
| Port Size | 1/4”, 3/8”, 1/2″ | Orifice(mm) | 5.0, 6.0, 7.0 |
| Port Connection | BSPP,BSPT, NPT, Flange | Function | Normally closed or opened |
| Pressure | 0.5MPa-25 MPa | Voltage | DC-12V, 24V; AC-24V, 120V, 240V/60Hz; 110V,220V/50Hz |
| Temperature of media | NBR Seal: 0~80℃
EPDM Seal: 5~190℃ |
Suitable Media | Water, hot water, compressed air, oil |
| Material | Stainless steel | Sealing Material | PTFE |
| Coils | S21B, 24V(AC), 18W(DC), Ip65, 100%ED | ||
